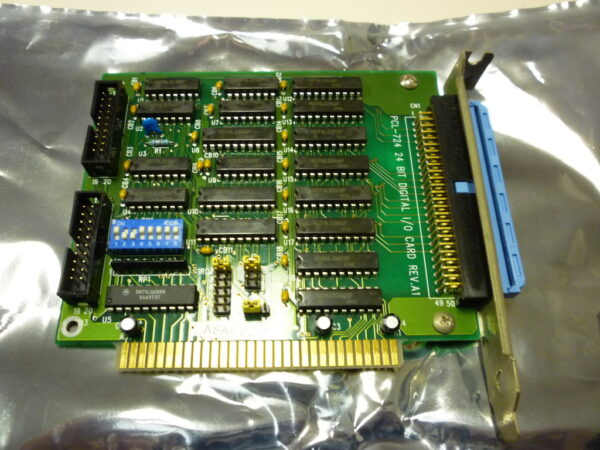

Advantech PCL-724 24-ch digital I/O ISA card
€51,00
ISA digital I/O card with 24 shared 5 V TTL input/output channels.
€51,00excl. VAT
Description
The Advantech PCL-724 is a digital I/O expansion card for the ISA bus. It provides 24 channels shared between input and output, with 5 V TTL logic levels. The manufacturer specifies one female DB50 connector and 8255 PPI mode-0 emulation. Output-status readback and an interrupt-capable channel are provided. The PCL-731 shown in the same datasheet is a separate 48-channel model.
Documentation
Additional information
| Weight | 0,2 kg |
|---|---|
| Dimensions | 20 × 15 × 5 cm |
| Bus | ISA |
| Digital I/O | 24 shared input/output channels |
| Logic | 5 V TTL |
| Connector | 1 × female DB50 |
| Dimensions | 125 × 100 mm |
