Berger Lahr VRDM3910/50LWC BRS39AW660ACA 52426035000 3-Phase stepping motor
$387,43
Three-phase Berger Lahr stepper motor, 85 mm flange, nominal base motor length 98 mm.
$387,43excl. VAT
Description

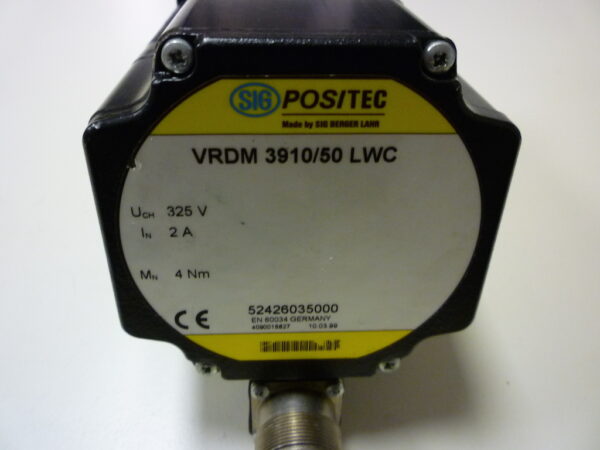

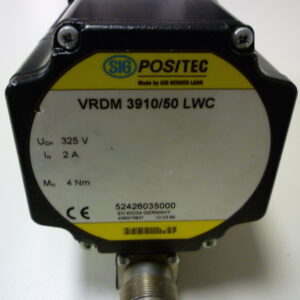

Berger Lahr VRDM3910/50LWC BRS39AW660ACA 52426035000 3-Phase stepping motor
Schneider BRS39AW660ACA

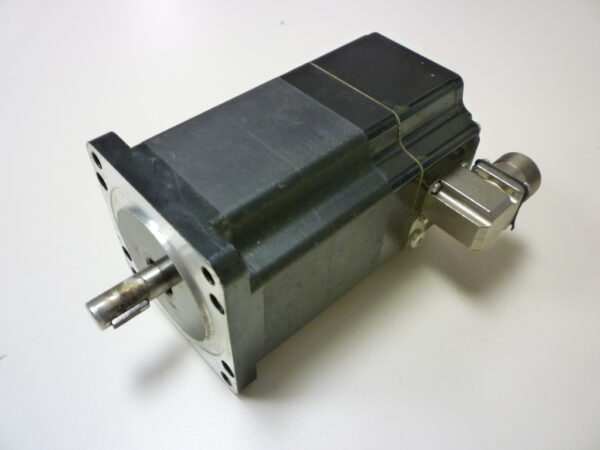

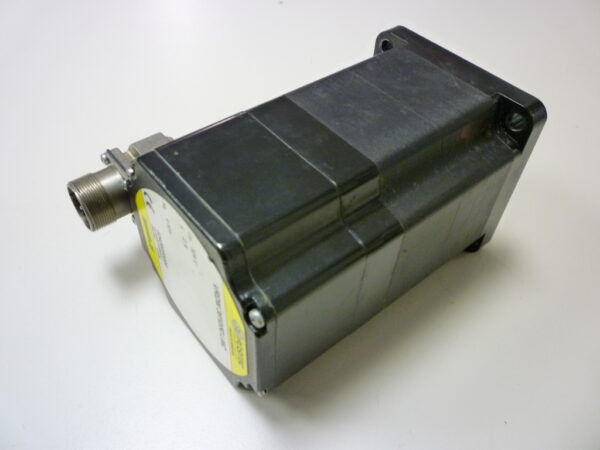

The Berger Lahr VRDM3910/50LWC is a three-phase stepper motor with a 85 mm mounting flange. Its type code identifies a laminated rotor and electrical connector. The nominal base motor length is 98 mm. Gearboxes, brakes and shaft details must be matched separately when selecting a replacement; the body dimension does not include an attached gearbox.
Documentation
- Berger Lahr VRDM3xx motor manual (PDF) (Original manufacturer manual; historical distributor mirror. Use the type-code section for this motor variant.)
Additional information
| Weight | 3,5 kg |
|---|---|
| Dimensions | 30 × 25 × 20 cm |
| Motor type | Three-phase stepper |
| Motor flange edge | 85 mm |
| Nominal base motor length | 98 mm |
| Pole pairs | 50 |
| Electrical connection | Connector |
