VAT 16246-PA41-AFT1/0056 HV Pendulum isolation valve DN200 (8″) ISO-F flange

VAT 26532-KA41-BXA1 HV Inline valve 40mm 11/2″ pneumatic single acting actuator with closing spring (NC)
Maxos Disc S 851033 Borosilicate safety sight glass tempered diam 90×10 8 bar

$4.471,60

$4.471,60excl. VAT
Availability: 1 in stock Part no: OTB P-000-06-6061R Model/type: 16246-PA41-AFT1/0056 Condition: refurbished Manufacturer:

A question about the condition, reference or delivery? The product details are included with your message.

Shipping
Options and costs are shown at checkout after you enter your delivery address.
VAT
Prices exclude VAT. Any applicable VAT is calculated at checkout based on your delivery address and VAT details.
Warranty & returns
Read our warranty terms and return procedure.

Description

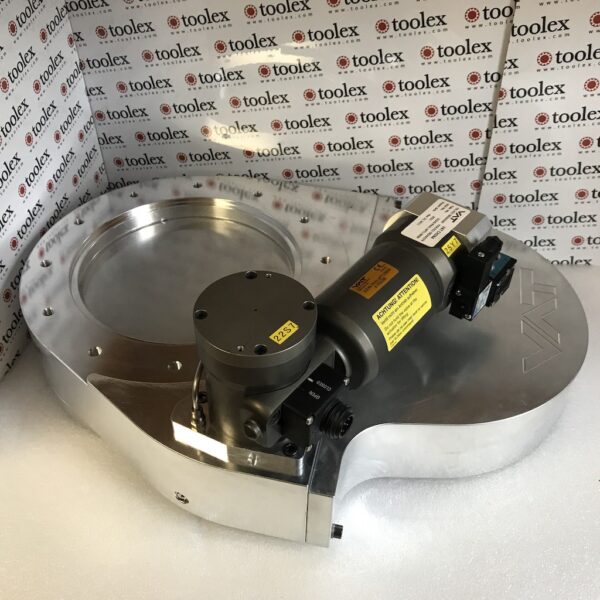

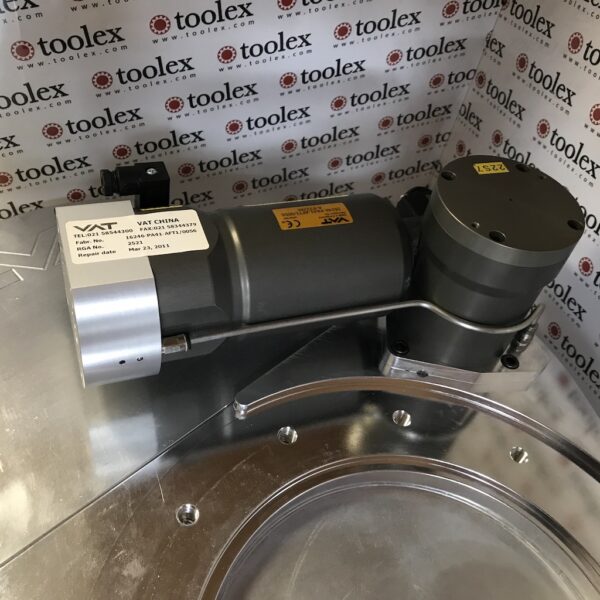

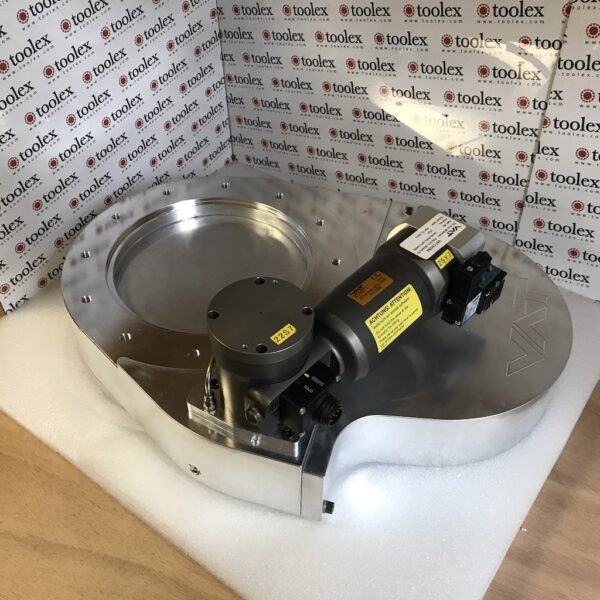

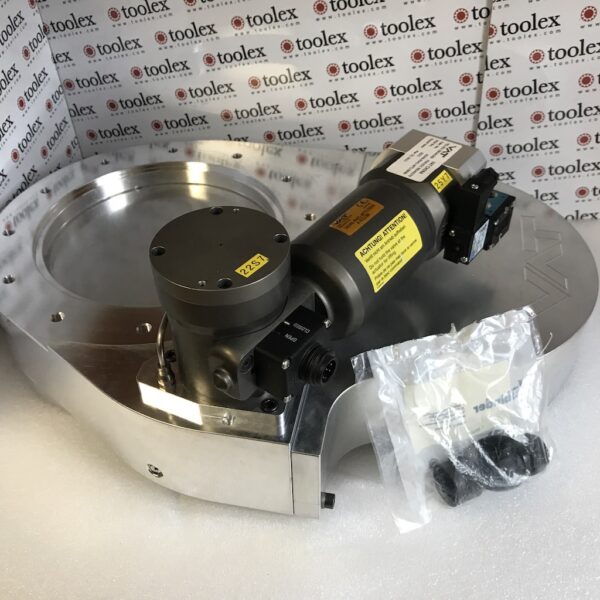

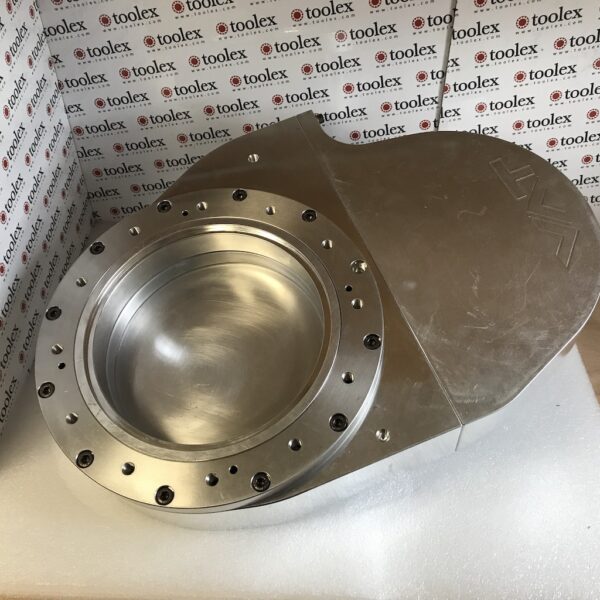

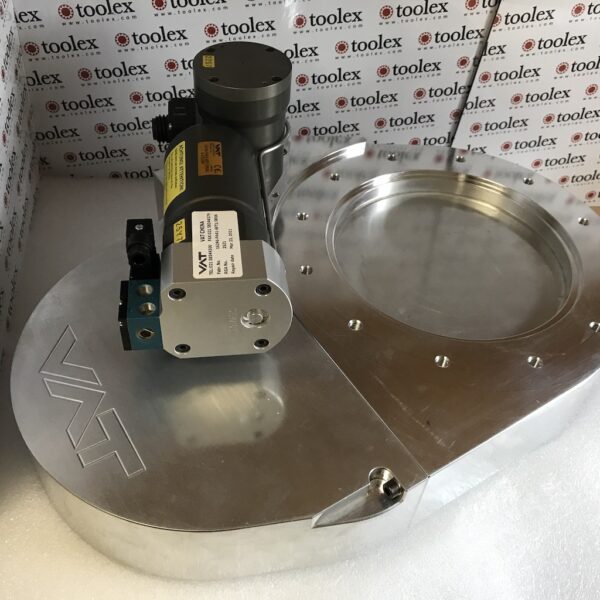

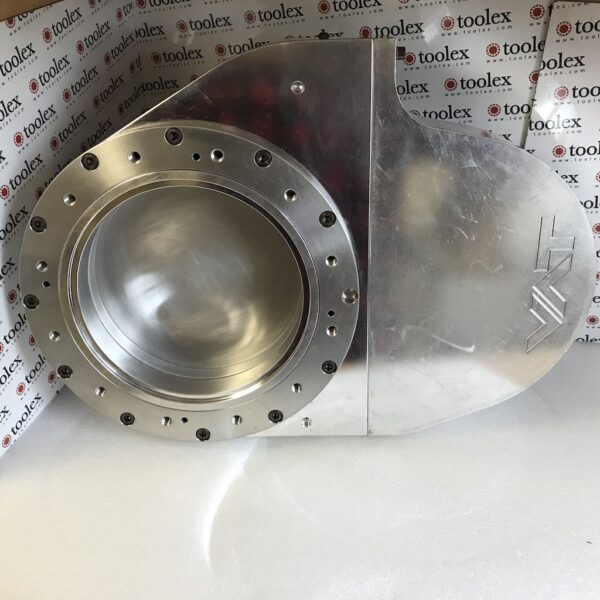

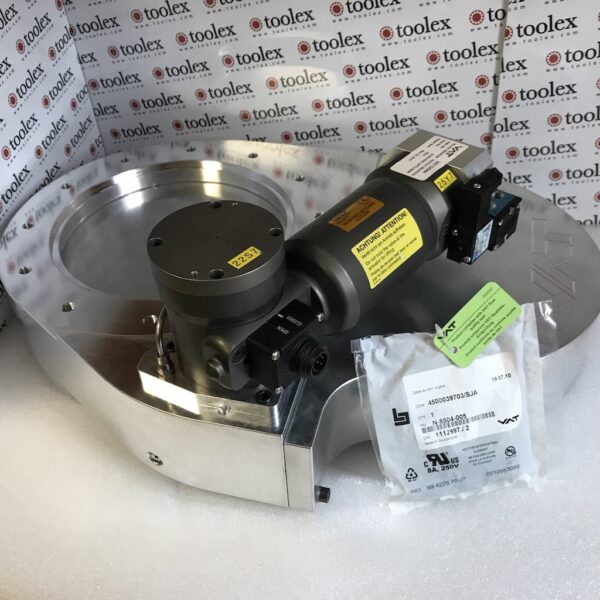

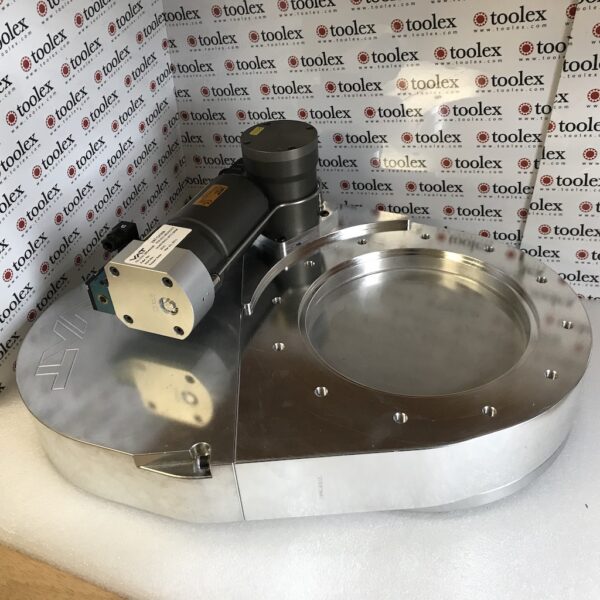

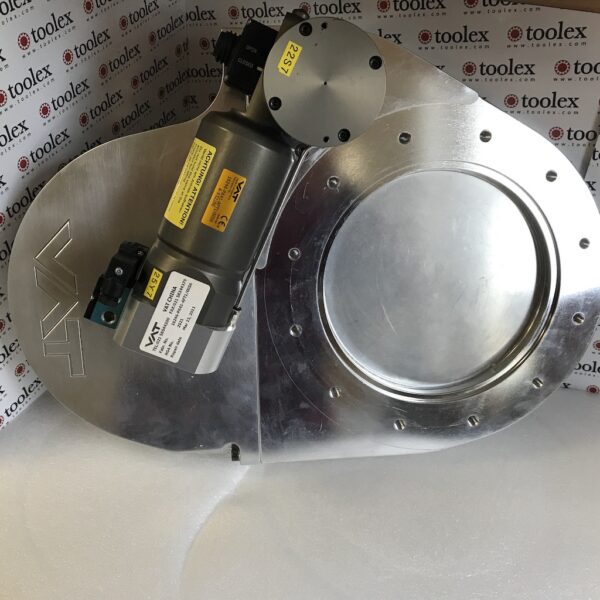

VAT 16246-PA41-AFT1/0056 HV Pendulum isolation valve DN200 (8″) ISO-F flange

Pneumatic single acting actuator with closing spring (NC)

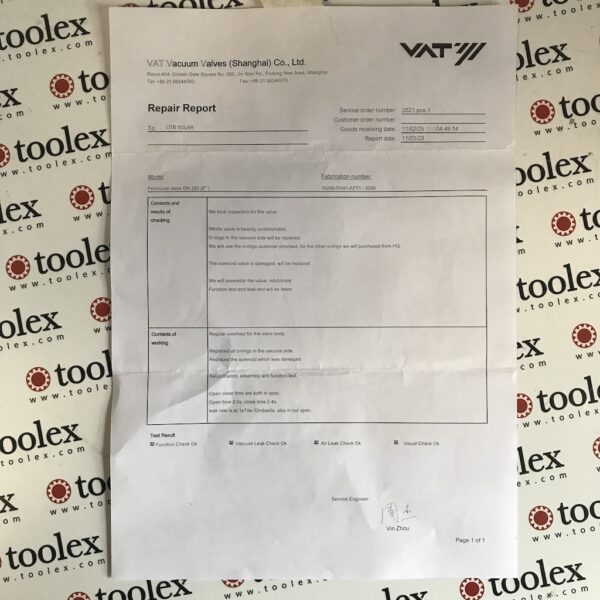

Refurbished in 2011 (see photo report)

162_HV_Pendulum_Isolation_Valve_16246_PA41_Product_Datasheet-600337EA_r

162_HV_Pendulum_Isolation_Valve_16246_PA41_2D_Dimension_Drawing-250024EC_r

162_HV_Pendulum_Isolation_Valve_16246_PA41_Manual-603156EA_r
